What

Calculating positions of stars

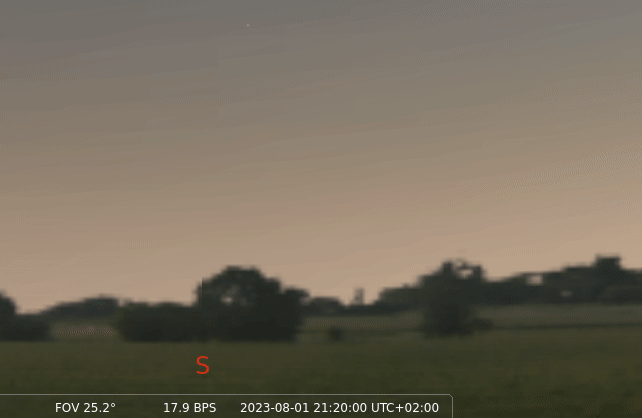

When looking up at the sky we see that the stars move. If we want to point a telecope at a star we find that it not only moves out of the field of view, but is in a different location every night.

With star cards or software or astronomy software we can get the current azimuth (angle from North) and altitude/elevation (angle from ground) at a given location and time.

But how does the math behind this work?

Contents

When

Telescope Mounts

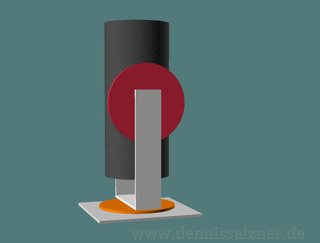

There are different telecope mounts with the most basic being the “dobsonian mount” or “alt-azimuth mount”.

With this kind of mount we need to set the azimuth and altitude and adjust them as we are viewing.

There are also equatorial mounts. With an equatorial mount the same degrees of freedom are set, but the entire mount is tilted against the axis of the earth. A motor that turns against the rotation of the earth works against the stars moving out of the field of view.

Why

But no mater the mount, unless it is fully motorized and “GoTo”-capable, we need to know where to point our telescope. We can look for star constellations and manually point the telescope in that direction, but it would be a lot easier, if we knew the exact angle from north (azimuth) and the angle from the ground (elevation) of the object we want to view.

Background

Solar System

So how does this motion of the stars come about?

As it turns out, this was some 2,5 thousand years ago, astronomers, by viewing the night sky and recording positions of stars, found that it’s not the stars that move, but it’s our planet earth that moves around the sun while rotating around its own axis.

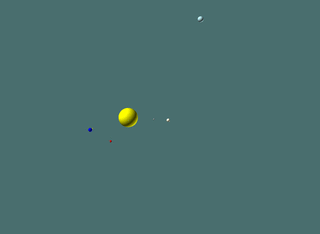

The earth (in blue in the image) moves around a star, the sun. The stars, in the grand scheme of things, hardly move at all in relation to one another.

In order to calculate the position of a star on the night sky when viewing from earth, we need to take the observers location on earth, viewing direction and time into account.

(generated by code based on [1])

Representations of location

The first thing we need to think about is how we represent positions of stars. For this we need to look into coordinate systems that are used to locate them.

Coordinate Systems

Since it’s us moving and not the stars it makes sense to define a better coordinate system to locate stars. With that better coordinate system we can then, for a given time and place, convert it into our azimuth (angle from North) and altitude/elevation (angle from ground) system. With that information we know where to point our telescope.

That better coordinate system should have a center point that is stationary with respect to the stars. Ideally the coordinate of a given star in that coordinate system should always be the same.

A good overview of coordinate systems is given on Wikipedia [2].

The equatorial coordinate system fullfills this requirement. The location of a given star is given as right ascension (RA) and declination (DEC) and these values remain constant.

in Decimal Degrees:

Time, Angles and Position

It’s important to understand that in astronomy, time and position, are interchangably represented by angles.

• the earth rotates around it’s own access roughly every 24 Hours (= 1 day)
• the earth rotates around the sun in roughly 365 days (= 1 year)

and

• 24 Hours corresponds to a 360 degree rotation around the earths axis.
• And 356 days corresponds to a 360 degree roation around the sun.

A point

• in a cartesian coorindate system is given by (x, y, z).
• the same point can be given by vector (angle around Y axis (=azimuth), angle around Z axis (=elevation) and length)

Center point of the equatorial coorindate system

To use the equatorial coordinate system, and in order to convert from Azimuth/Elevation to it, we need to understand where it’s center of origin is.

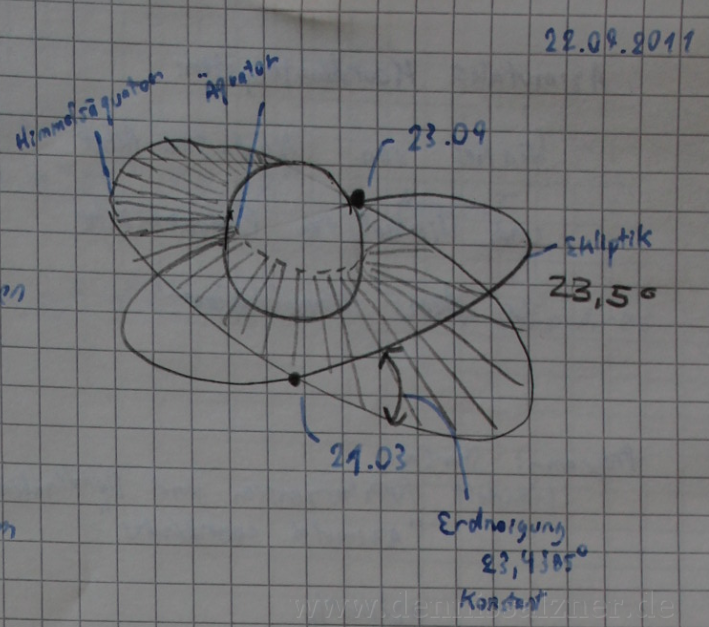

For this astronomers use the “solar equinox” (german: “Äquinoktium”, from Latin “Night” and “Equal” or “Tagundnachtgleiche”). It is a time of the year when the night and day have the same duration.

In astronomy this “solar equinox is the moment in time when the Sun crosses the Earth’s equator”. Or in other words when the location of the earth is where the ecliptic plane (=orbital plane of the earth around the sun) crosses the equator plane of the earth.

This occurs twice a year on around the 20st of March and around the 23rd of September as you can see in this image from 12 years ago.

Your location on earth

Additionally, to compute the azimuth and declination of a star from your viewing point, we need to take into account your location. After all a star would be in a different location, if you are on the other side of the planet (and not visible, because the earth is inbetween you and the star).

For this we use Longitude and Latitude.

Examples in the common Degrees, Minutes, Seconds (DMS) notation are:

But for calculations we use the decimal representation:

Representations of time

Our day to day system for communicating time is more than inconvenient for calculations.

Most values have a different range depending on conditions on other values. There are leap years and leap seconds. The set of (h:m:s d:M:Y) does not increment evenly.

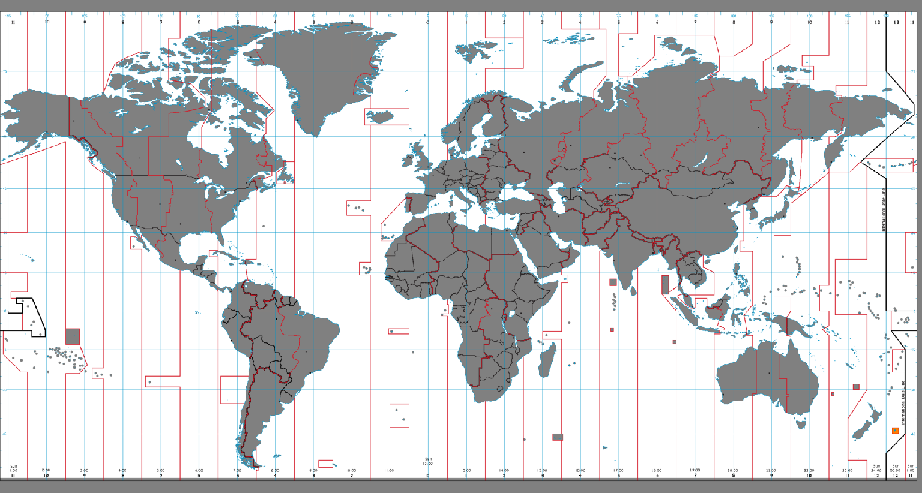

Additionally we have to deal with time zones. They were arbitrarly decided upon and so time zone boundaries run unevenly.

(image source [8])

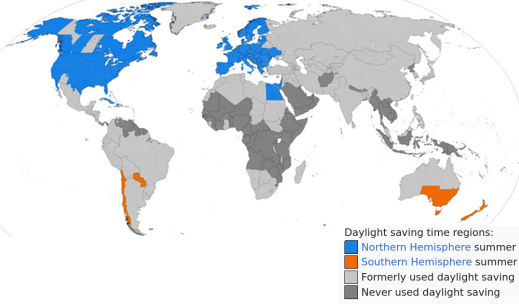

Some countries use daylight savings time, while other do not. Even the day and time on which countries choose to switch is arbitrary.

(image source [4])

So the first step has to be to convert date and time into something more usable. For this Universal Time and the Julian Date is commonly used.

Univeral Time

First we need to get rid of time zones and daylight savings time.. For this we take the local time and offset it by the Univeral Time Offset. For Berlin it is 3 hours.

Notice how, with the same universal time, the local time in Paris on the 1st January is differnt to the local time on the 1st of August. This is due to daylight savings time.

Julian Date

With the universal time, that is invariant of the time zones and the daylight savings time, we can calculate the Julian Date. The Julian Date is a single evenly incrementing decimal number and gets us away from leap years and seconds.

The Julian Date is the number of days since the January 1st 4713 BC at 12:00 Uhr Universal Time. It is a decimal number. The values after the dot repesent fractions of a day.

Sidereal Time

Sidereal Time is the angle in hours from the vernal equinox. We can convert from the Julian Date to the sidereal time and then use the sidereal time to calculate the actual position of the star.

It accounts for all the motion and rotation of the earth. In other words: for a specific location and sidereal time the night sky will look the same.

Note that the equations to convert from JulianDate to Sidereal work for the date, but not for time. We calculate the JulianDate at 0:00 and use that to compute the sidereal time at greenwich obsevatory at 0:00. We can then add local time and local location longitudinal offset.

Then we add our time offset and longitude offset to get local sidereal time.

How

Testing Data

In order to properly test the calculation it makes sense to gather some data points. In the ancient times we would have to watch the night sky for years and minutely measure and document the positions of the stars relativ to the viewing point. Luckily there is software that already has the equations implemented. I’m using the free astronomy software “Stellarium” to create data for verification.

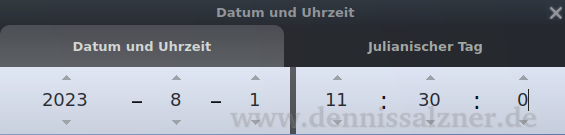

For this we pause the simulation and set the following date and time

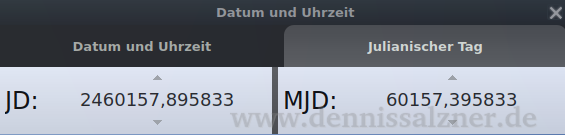

In the other tab see that also Stellarium computes the Julian Date to 2460157.895833.

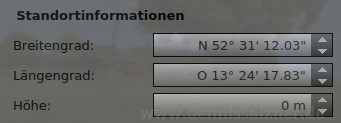

We set the location to

Stellarium rounds a bit

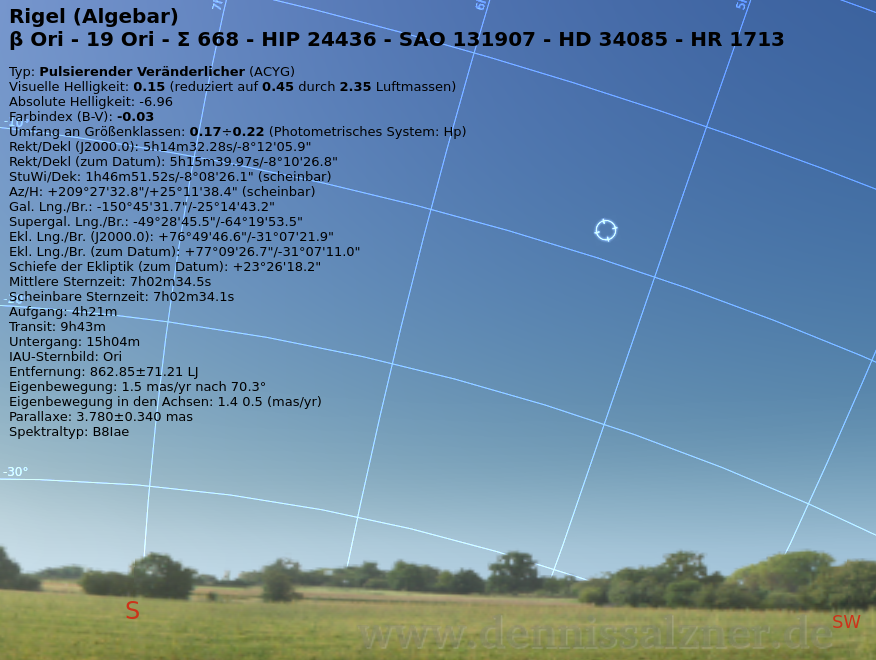

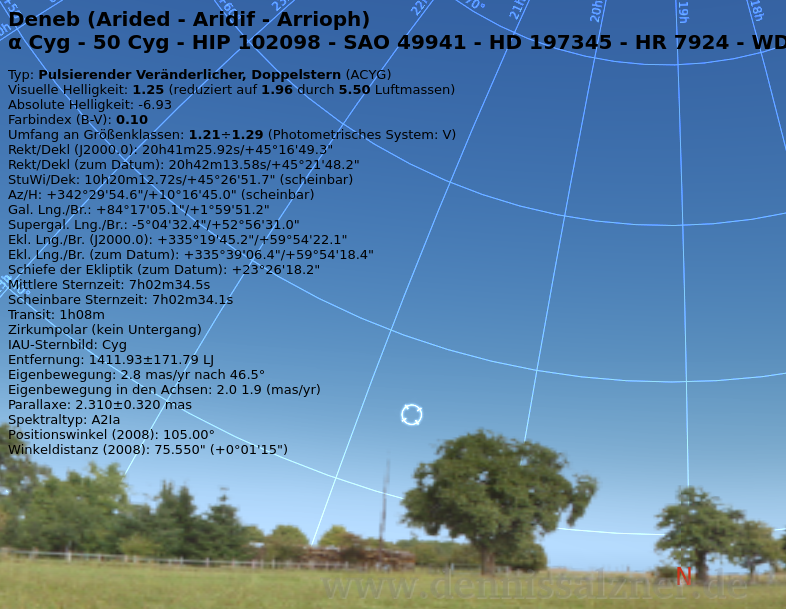

By entering the star into the search field we can display the information from the computation performed by Stellarium.

Notice that Stellarium performs more exact calculations. Amongst other things it takes variances of the angle of the ecliptic plane to the equatorial plane into account.

Stellarium computes the mean sidereal time to:

and the star positions to:

We expect our computation to output similar values.

Implementation

With the above background information and values for testing we can now move to the implementation.

Overview

Code

It took me some time to get this right and I found that we need to be rigorous with our math. Here are some learnings:

• for testing input and output values have to be correct to the decimal
• there are many conversions and we need to watch out for corner cases like negative degrees, arcminutes, arcseconds
• it pays off to calculate primarily in decimal hour angles for time, as these can be easily converted to degrees
• for trigonometry we need radians
• choosing the wrong unit to represent the numbers will introduce rounding errors and break numerical stability
• even seemlingly simple tasks such as computing the ellapsed time between two dates can go horribly wrong, so always use the libraries the programming language provides. They take care of value ranges (e.g. number of days in a month), leap years and also leap seconds.
• use online calculators to verify every step and, during development, assert the intermediate results in your code
• we’re dealing with a lot of variables, so use consistant naming and add units to not mix them up
• keep it simple and stupid
• do the calculations step-by-step, effectively dividing and conquering the problem

Input Parameters

date_dmy=(1, 8, 2023)
time_hms=(11, 30, 0)
lat_dms=(52, 31, 12.0288)
lon_dms=(13, 24, 17.8344)

starRa_hms = (5,14,32,3)
starDec_dms = (-8,12,5.9)

Computing Sidereal Time

lon_dms -> lon_deg, lat_dms -> lat_deg

def dmsToDeg(dms):
    res = abs(dms[0]) + dms[1] / 60 + dms[2] / 3600
    return res if dms[0] > 0 else -res
lon_deg = dmsToDeg(lon_dms)
lat_deg = dmsToDeg(lat_dms)

assert 13.404954 == lon_deg
assert 52.520008 == lat_deg

date_dmy, time_hms -> dateTime_dt

import datetime
dateTime_dt = datetime.datetime(
    date_dmy[2], date_dmy[1], date_dmy[0],
    time_hms[0], time_hms[1], time_hms[2])

lat_deg, lon_deg, dateTime_dt -> offsetUtc_dt

import pytz
from tzwhere import tzwhere

tzwhere = tzwhere.tzwhere()
timezone_str = tzwhere.tzNameAt(lat_deg, lon_deg)
timezone = pytz.timezone(timezone_str)
offsetUtc_dt = timezone.utcoffset(dateTime_dt)

assert "Europe/Berlin" == timezone_str
assert "2:00:00" == str(offsetUtc_dt)

dateTime_dt, offsetUtc_dt -> dateTimeUtc_dt

dateTimeUtc_dt = dateTime_dt - offsetUtc_dt

assert "2023-08-01 09:30:00" == str(dateTimeUtc_dt)

dateTimeUtc_dt -> dateTimeUtc0h_dt

dateTimeUtc0h_dt = dateTimeUtc_dt.replace(hour=0, minute=0, second=0)

assert datetime.datetime(2023,8,1,0,0,0) == dateTimeUtc0h_dt

dateTimeUtc0h_dt -> julianDateAt0h_h

at_2000_1_1_dt = datetime.datetime(2000, 1, 1, 0, 0, 0)
julianDateAt0h_h = 2451544.5 + ((dateTimeUtc0h_dt - at_2000_1_1_dt).total_seconds() / (24*60*60));

assert 2460157.5 == julianDateAt0h_h

julianDateAt0h_h -> siderealGreenwich0h_h

def hoursToHms(hour):
    s = hour * 3600
    m, s = divmod(s, 60)
    h, m = divmod(m, 60)
    return (h, m, s)

import math
T = (julianDateAt0h_h - 2415020.0) / 36525.0;
SS = 6.6460656 + 2400.051*T + 0.00002581*T*T;
siderealGreenwich0h_h = (SS / 24 - math.floor(SS / 24)) * 24;

assert (20.0, 37.0, 22.39818407072744) == hoursToHms(siderealGreenwich0h_h)

siderealGreenwich0h_h -> siderealGreenwichNow_h

timeSince0h_h = dateTimeUtc_dt.hour + dateTimeUtc_dt.minute / 60 + dateTimeUtc_dt.second / 3600

assert 9.5 == timeSince0h_h

siderealGreenwichNow_h = siderealGreenwich0h_h + timeSince0h_h

siderealGreenwichNow_h -> siderealLocationNow_h

lon_h = lon_deg / 15
assert 0.8936636 == lon_h

siderealLocationNow_h = (siderealGreenwichNow_h + lon_h) % 24

assert 7.0165519844640905 == siderealLocationNow_h

# more accurate result would be (7.0, 2.0, 33.22359767072271)
assert (7.0, 0.0, 59.587144070726936) == hoursToHms(siderealLocationNow_h)

Compute Position of Star

With the sidereal time we can then compute the current location of the star.

Convert to radians to get siderealLocationNow_rad, starRa_rad, starDec_rad

def degToRad(deg):
    return deg * (2 * math.pi / 360)

siderealLocationNow_deg = siderealLocationNow_h * 15
siderealLocationNow_rad = degToRad(siderealLocationNow_deg)

def hmsToDeg(hms):
    return (hms[0] + hms[1] / 60 + hms[2] / 3600) * 15

starRa_deg = hmsToDeg(starRa_hms)
assert 78.63333333333333 == starRa_deg

starDec_deg = dmsToDeg(starDec_dms)
assert -8.201638888888889 == starDec_deg

starRa_rad = degToRad(starRa_deg)
starDec_rad = degToRad(starDec_deg)

Apply the trigonometry

current_ra_rad = siderealLocationNow_rad - starRa_rad

M = math.atan(math.tan(starDec_rad) / math.cos(current_ra_rad))

lat_rad = degToRad(lat_deg)

current_az_rad = math.atan(math.cos(M) * math.tan(current_ra_rad) / math.sin(lat_rad - M))
current_el_rad = math.asin(math.sin(lat_rad) * math.sin(starDec_rad) + math.cos(lat_rad) * math.cos(starDec_rad) * math.cos(current_ra_rad))
current_az_rad += math.pi # translate from north to south

Display result

def radToDeg(rad):
    return rad * (360 / (2 * math.pi))
current_az_deg = radToDeg(current_az_rad)
current_el_deg = radToDeg(current_el_rad)

def degToDms(deg):
    d, m = divmod(deg, 1)
    m, s = divmod(m * 60, 1)
    return (d, m, s * 60)

current_az_dms = degToDms(current_az_deg)
# more accurate result would be +209° 27' 32.8''
assert (209.0, 20.0, 5.142262798392494) == current_az_dms

current_el_dms = degToDms(current_el_deg)
# more accurate result would be +25° 11' 38.4''
assert (25.0, 9.0, 56.126346981354516) == current_el_dms

print("result | " + str(current_az_dms) + " | " +  str(current_el_dms))
print("stellarium | +209° 27' 32.8'' | +25° 11' 38.4'' |")

We get

result | (209.0, 20.0, 5.142262798392494) | (25.0, 9.0, 56.126346981354516)
stellarium | +209° 27' 32.8'' | +25° 11' 38.4'' |

Which is off by a bit in part due to correctional factors, e.g. for light refraction compared to Stellarium and other calculators.

But also because our siderealLocationNow time is

 (7.0, 0.0, 59.587144070726936)

instead of

(7.0, 2.0, 33.22359767072271).

The calculation is close enough to show the calculation method is correct.

Progress

Conclusion

We can calculate the current azimuth and elevation of a star at the time and location of an observer. The similified calculation above is only an approximation, but close enough to explain the calculation steps.

We could use the “HYG Stellar Database” (comes as a *.csv file) and use matplotlib to plot all stars above a certain brightness (apparant magnitude). We could use that brightness as the size of the point in the plot. That would give us a representation of the night sky similar to what other astronomy software shows.
